This test set has been designed to qualify the line for transmission
of different signals (like POTS ,ISDN ,HDSL ,ADSL ,etc.) by
measuring transmission loss & noise of the line. The test set is comprised of two units: SG8608(signal
generator unit) that is needed only when we want measure the loss
and crosstalk between pairs and LN8608(receive unit) that measures
received signal level , noise of the circuit and noise to ground. The
units are easy to operate ,lightweight , handheld and portable.
Appropriate carrying cases
have been provided for both units.
|

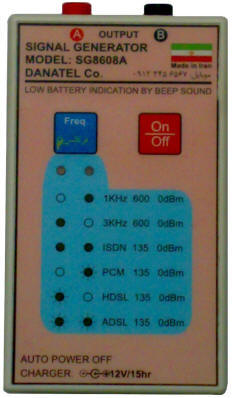

SG8608 Features:
- Generation of frequencies:
- for POTS:200Hz up to 3000Hz with 100Hz steps
- for ISDN ,PCM ,HDSL ,ADSL
- Indication of selected frequency band by LEDs
- Automatic impedance selection according to
selected frequency band
- Auto power off
- Powered by Ni-MH rechargeable batteries(50 hours of operation
between charges)
- Easy operation
- Lightweight , handheld and portable
- Appropriate carrying case
- One year guaranty and 10 year technical support
|

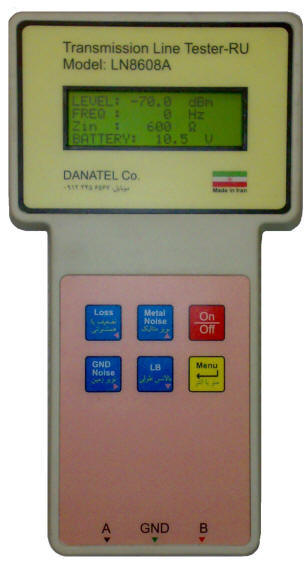

LN8608 Features:
- Measurement and display of line loss in dB
-
Frequency measurement and display simultaneously
with dB
- Crosstalk measurement(far-end & near-end)
between pairs.
- Circuit noise & ground noise measurement with
C-message filter
- Impedance selection of 135/600 Ohm by user
according to received frequency band
- Auto power off
- Powered by Ni-MH rechargeable batteries(25 hours of operation
between charges)
- Easy operation
- Lightweight , handheld and portable
- Appropriate carrying case
- One year guaranty and 10 year technical support
|
|
|
