1-
Multifunction Cable Fault Locator:
DANATEL 965DSP/A
|
DANATEL
965DSP/A multifunction cable fault locator integrates the
functionalities of a number of standalone locators & instruments into a
single one with digital technology and high performance. It has been
designed using modern digital techniques according to the requirements
of telecom specialists & operators. It can diagnose the loop for type of
fault and exactly locate the fault. It displays distance to fault for
resistance faults (short, ground, cross and battery-cross), Opens
(complete open, partially open and dirty open) and Splits up to 50 Km.
It uses bridge technique for accurate locating of resistance faults
(light shorts or solid shorts) and there is not required any manual null
adjustment of the
bridge circuit because it is done by the instrument software
automatically.
It also integrates signal generator functions, insulation
resistance measurement up to 10 GOhm ,resistance unbalance of the
subscriber pair and loop ohm measurements and telephone set
functionality. It can also measure DC or AC
voltages
on the pairs up to 300V ,loop current, shield ohm with an special technique for
compensating voltage differences normally found on two ends of the shield. It knows
standard cable types (including AIR CORE & JELLY FILLED) and various gauges used
in the telecom industry. Also, other non-standard cable types and gauges are
acceptable with "calibrate to cable" menu command or user data entry for cable characteristics.
Finally, It is rugged and weighs less than 2kg. |
|
|
 |
2- Transmission Line Test Set(Line Analyzer):
LN8608/SG8608
This test set has been designed to
qualify the line for transmission of different
signals (like POTS ,ISDN ,HDSL ,ADSL ,etc.) by
measuring transmission loss & noise of the line. The
test set is comprised of two units: SG8608(signal
generator unit) that is needed only when we want
measure the loss and crosstalk between pairs and
LN8608(receive unit) that measures received signal
level , noise of the circuit and noise to ground.
The units are easy to operate ,lightweight ,
handheld and portable. Appropriate carrying cases
have been provided for both units.
|
|
|
 |
3- Insulation Tester:
IT8506
|
IT8506 is used for measuring insulation resistances
of cables ,insulation materials and electrical
installations. It can measure insulation resistances
up to 200,000 Mega Ohms by applying a nominal test
voltage. Test voltage is adjustable to 100V , 250V
or 500V. It do'es not require any external power
supply to be operated, because it uses rechargeable
batteries inside the unit. The best measurement
range is selected automatically by the instrument
according to the measured value and there is not any
need to operator adjustment. The measurement speed
is high and because of digital display ,there is no
reading errors by operator. The tester is
lightweight , handheld and portable. It has an
appropriate carrying case.
|
|
|
4- Cable Fault Indicator/Pair Checker:
CFI8207
|
This test set is used for checking
existence of discontinuities ,splits and short faults on pairs of
telecom multi-pair cables. There are two units ,named transmit unit &
receive unit ,with two headsets. Two technicians at the ends of
the cable work together to find these faults. They begin at first pair
and continue to the last in a synchronized manner. When they notice a
fault they remark it for later use. This test set is useful for
installation phases of multi-pair cables. |
|
|
 |
5- Cable Fault Indicator/Pair Checker:
CFI8502
|
This test set is used for checking
existence of discontinuities ,splits and short faults on pairs of
telecom multi-pair cables. There are two units ,named transmit unit &
receive unit ,with two headsets. Two technicians at the ends of
the cable work together to find these faults. They begin at first pair
and continue to the last in a synchronized manner. When they notice a
fault they remark it for later use. This test set is useful for
installation and maintenance phases of multi-pair cables. |
|
|

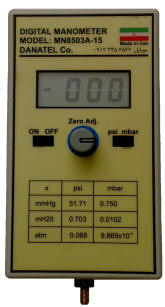

6- Digital Manometer:
MN8503
|
This instrument has been designed for measuring air pressure in PSI and mBAR
units. The measurement range is up to 30PSI. Also ,it can also be ordered
for some other ranges. It's powered by rechargeable batteries and has an
appropriate carrying case. |
|
|
 |

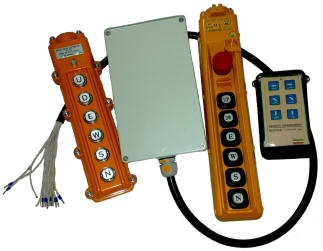

7- Crane Wireless Remote Control:
RC8702
|
Using this control system , operator
can control the movement of crane remotely in three directions without any control cable.
The control commands are transmitted over a radio frequency channel to
receiver unit to control the crane motors. The most important advantage
of using this system is immunity of operator and being free for
movements at the same time that controls the crane movement.
|
|
|

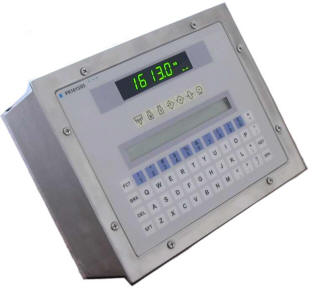

8- Compact Weighing Indicator & Controller(Weighing
Terminal)PR161303L
|
Using this electronic weighing system one can measure the weight of
materials and use the result in a control process. It is a programmable
system with predefined softwares written for specific applications. Also
, user can develop its software with an easy high level programming
language. Among the predefined applications are:
- PR1613/03L as a weighbridge indicator(PR1613/10 software)
- PR1613/03L as a batching controller(PR1613/20 software)
- PR1613/03L as a totalizer or flow rate controller - weigh
feeder(PR1613/30 software)
|
|
|
|
